Reloading Press Shellplate LED light System - The Firearms Forum

1in9twist · 10-19-2011, 11:44 AM

Thank you for checking out this thread. As a safety habit, I always look down inside my cases before setting a bullet to double check the powder level. It isn’t easy to get light directly inside the press cage with-out having some hot, glaring gooseneck light in the way. In looking at ways to solve this problem, I have come up with this item and design. It features a 110 to 12v adaptor wired to a 6 LED flexible strip which has a piece of 3M Redline doublestick tape on it. I did not wire in a switch as I figured it would be plugged into a multi-outlet strip. The LED’S put out a ton of light and zero heat. They are also sealed inside a clear silicone casing. The LED strip mounts to the inside beam of just about any press flooding the shellplate with bright white light.

So the question is, do you think you would purchase something such as this and at what price point would it be worth it? It is not a cheap item to produce, but really does the job. I did not want anything with batteries, as the LEDS get dimmer as they the batteries discharge and are expensive. The LED lights also have a expected lifespan of over 50,000 hours.

Prices on my website are always “Shipped” prices and if purchased with another item, it would be discounted and shipped free with that other item.
www.inlinefabrication.com
Your thoughts\suggestions are hereby requested.

Thank you
D

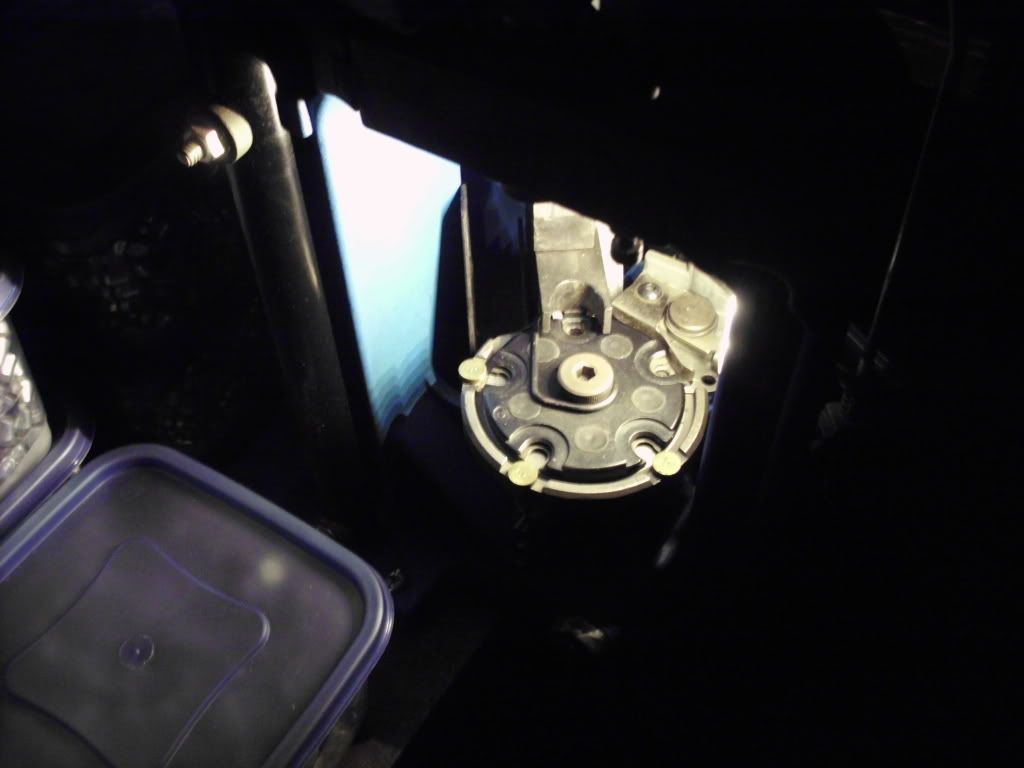

In these pictures below, there were NO other lights on and no camera flash.

Left Side

Right side

hunter29180 · 10-19-2011, 12:26 PM

looks like a winner to me!

The Duke · 10-19-2011, 12:40 PM

Right nifty...I got a bucket full of old transformers...find me some LEDs and rig up one for myself..

...I think its an excellent idea, btw...I just found some of the goose neck lights on the sale shelf at WM for only $4.00, so bought 2 yesterday..Wouldnt ya know it..

Brisk44 · 10-19-2011, 12:58 PM

It looks great but what would you have to charge for it?

X Ring · 10-19-2011, 02:27 PM

Excellent idea, think I will be headed to Radio Shack shortly.

312shooter · 10-19-2011, 04:34 PM

Great timing for me! I just dabbled around with cheap reading style light on my own LNL and you are spot on with the term "gooseneck" in the way of looking down inside your powder filled casings.

Its difficult to think of a pricepoint on an item like this. Remember as reloaders we all have a few thrifty bones in our bodies otherwise we would be shooting factory ammo and not trying to pinch cost on our ammo. Personally, I would consider this item at least as valueable as a powder cop die, this will reduce the chances of a double charge or squib if you are paying attention, so I would say $25-$30 for your excellent idea. The only thing you face now is people trying to copy it since you have broadcasted the item on the web!

1in9twist · 10-26-2011, 12:45 AM

Page is up. Thank you all for your thoughts and feedback!

http://inlinefabrication.com/LED_LIGHTING_SYSTEMS.html

V509 · 10-26-2011, 05:32 AM

great idea!!
I have a buddy that remodels retail shops and he gave me some track lighting which was removed from a shoe store. I have that above my reloading area but have to be using WAY more electricity than your idea

jack404 · 10-26-2011, 06:12 AM

1 in 9 grab a DS 1919-34 tectronics USB/led board, that way you dont need the big transformer and you can run it via a USB link , lower your costs , and USB cable , are cheap so you can make em 10ft.. and 110V-USB plugs are about $4 a pop

dont have to use the tectronics find the maker of any LED /USB laptop reading light get the board

buy a dozen to test , they're about a buck each plus postage

cheers

Dirtypacman · 10-27-2011, 12:37 PM

That is very slick ... I use a goose neck LED light so no heat build up either but I like yours better other then I can run my LED on battery power.

X Ring · 10-28-2011, 01:25 AM

I just ordered one. I was going to make one myself but the price is so good it would not be worth the aggravation. I will post my honest opinion of it after testing.

Caneman · 10-28-2011, 11:57 AM

cool, i like... how many hours do you get from these leds before they die?

skyfire1 · 10-29-2011, 07:30 AM

Yeap that is a good idea.

1in9twist · 10-31-2011, 11:41 AM

Quote:

Originally Posted by Caneman

cool, i like... how many hours do you get from these leds before they die?

Roughly 50,000 hours. You will need wrist,arm & shoulder replacements before the LED'S burn out.

X Ring · 11-04-2011, 02:49 AM

Got it and am in the process of testing.

Pic was taken with ONLY the LEDs on. You can see it is really bright.
It’s a tight fit on the 650 but with careful placement works well. The on/off switch is really cheaply made and probably will not hold up to much abuse. As with most things the cord could be longer. Light is bright and improves visibility ten fold where it counts the most as pic showes. The LEDs will probably outlast the transformer but it would be easily replaced. It is worth the price paid and I am happy with it.
More pics here
http://s1096.photobucket.com/albums/...Press%20Light/

murphy's law · 11-27-2011, 07:20 AM

Just got mine in the mail yesterday. What a sweet device for minimal price it really does the job of putting some light where it needs to be.

1in9twist · 11-27-2011, 02:28 PM

Quote:

Originally Posted by X Ring

Got it and am in the process of testing.
Pic was taken with ONLY the LEDs on. You can see it is really bright.
It’s a tight fit on the 650 but with careful placement works well. The on/off switch is really cheaply made and probably will not hold up to much abuse. As with most things the cord could be longer. Light is bright and improves visibility ten fold where it counts the most as pic showes. The LEDs will probably outlast the transformer but it would be easily replaced. It is worth the price paid and I am happy with it.
More pics here

I am glad you are happy with it. All components were thoroughly tested prior to production run and performed very well. As with all of my products, if you have a problem\malfunction, hit me up and we will take care of it. No worries!

BobMcG · 12-02-2011, 04:00 PM

Quote:

Originally Posted by Dirtypacman

That is very slick ... I use a goose neck LED light so no heat build up either but I like yours better other then I can run my LED on battery power.

Been doing it same way here w/ the battery powered, goose neck LED.

Oh yeah, nice little invention.

Dirtypacman · 12-05-2011, 01:33 PM

Quote:

Originally Posted by BobMcG

Been doing it same way here w/ the battery powered, goose neck LED.

Oh yeah, nice little invention.

Wish I had thought of it

smlranger · 12-05-2011, 06:44 PM

Got my LED system in the mail today. Used it tonight loading some 45ACP. Simple to install and works great. Really puts the light on the workspace and you can easily check the powder level in station 4.

1in9twist · 12-06-2011, 09:49 AM

Quote:

Originally Posted by smlranger

Got my LED system in the mail today. Used it tonight loading some 45ACP. Simple to install and works great. Really puts the light on the workspace and you can easily check the powder level in station 4.

Great to hear! I am glad you like it!

medalguy · 12-07-2011, 09:26 PM

That looks pretty slick but I have a question for you. I have six presses and I don't want to have to buy six of these. Is there a way to mount the light strip so I can move it from press to press? Velcro? Would that fit Dillon presses? I don't obviously use all the presses at the same time.

1in9twist · 12-07-2011, 09:50 PM

Quote:

Originally Posted by medalguy

That looks pretty slick but I have a question for you. I have six presses and I don't want to have to buy six of these. Is there a way to mount the light strip so I can move it from press to press? Velcro? Would that fit Dillon presses? I don't obviously use all the presses at the same time.

Yep. No worries. The standard LED light system comes with 3m Dual Lock installed on the back of it. The LED kit also comes with extra Dual Lock so you can move it from press to press.

If you do order one, please send me a quick note and I will throw in enough extra Dual Lock to cover all your presses.

Note:
Dual Lock is basically a plastic fingered velcro. Great stuff!

1in9twist · 12-20-2011, 02:21 PM

Quote:

Originally Posted by medalguy

That looks pretty slick but I have a question for you. I have six presses and I don't want to have to buy six of these. Is there a way to mount the light strip so I can move it from press to press? Velcro? Would that fit Dillon presses? I don't obviously use all the presses at the same time.

Update.
I have decided to offer a modular version.

It will have one power supply, and one LED light with a quick connect installed on it. So, you are able to leave the LED unit installed on the press, disconnect the quick connect, then re-attach the power supply cord it to the next presses LED assembly.

These items below will be able to be purchased to fit your particular application.

"Y" adaptors (To run 2 lights off one power supply)
Quick connect extension cords.
Extra LED pigtail units.

All the parts are inbound, should be ready just after Christmas.

1in9twist · 01-11-2012, 02:26 PM

By listening to input and feedback that I ask for, I have created a "Modular" system. It uses the same LEDS that are in the original kit, but feature a quick connect so you can use the same power supply, for other LED "pigtail" equipped presses.
Also, option of a splitter to run 2 LED's off of 1 power supply or run a "ceiling" kit.

New "Ceiling" kit.
